| Table Size |
80x80mm |
| Travel stroke |
±12.5mm |
| Parallelism |
50μm |
| Moving parallelism |
20μm |
| Moving straightness |
3μm |
| Pitching |
40" |
| Yawing |
20" |
| Load capacity |
39.2N |
| Weight |
0.65Kg |
| Material |
Aluminum |
| Surface treatment |
Black anodized |

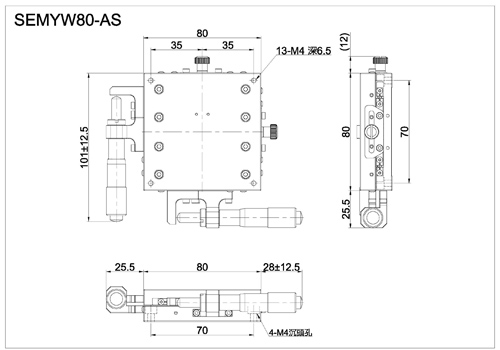

The xy axis crossed roller bearing stage with micrometer head SEMYW80-AS is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy.
The manual stage SEMYW80-AS is suitable for high-precision and heavy load mobile devices, precision measurement of optics laboratory, precision fine-tuning, production machinery, inspection equipment, precision positioning, quantitative movement, and more.
- Dual Axis : XY Axis Manual Stage Thin Type
- Feeding Position : Slide feeding
- Guiding Type : Crossed roller bearing guiding
- Feeding Mode : Micrometer Head Actuator with 0.01mm Resolution
