| Table Size |
100x100mm |
| Travel stroke |
±12.5mm |
| Parallelism |
50μm |
| Moving parallelism |
20μm |
| Moving straightness |
3μm |
| Pitching |
25" |
| Yawing |
15" |
| Load capacity |
140.0N |
| Weight |
1.28Kg |
| Material |
Aluminum |
| Surface treatment |
Black anodized |

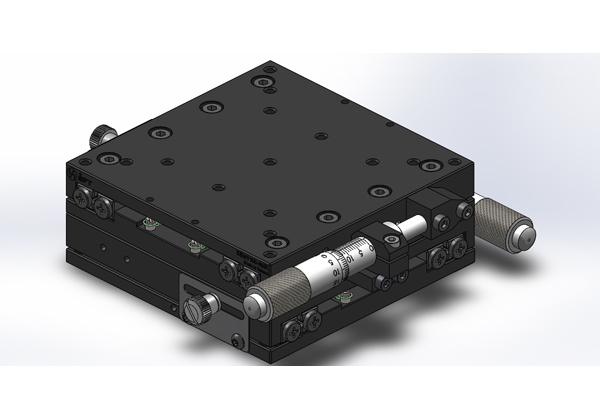

The xy axis crossed roller bearing stage with micrometer head SEMY100-ASR is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy.
The manual stage SEMY100-ASR is suitable for high-precision and heavy load mobile devices, precision measurement of optics laboratory, precision fine-tuning, production machinery, inspection equipment, precision positioning, quantitative movement, and more.
- Dual Axis : XY Axis Manual Stage
- Feeding Position : Reversed Slide feeding
- Guiding Type : Crossed roller bearing guiding
- Feeding Mode : Micrometer Head Actuator with 0.01mm Resolution
