> Super Slim Cross Roller Bearing SRAU Type | One piece inner & outer ring
Super Slim Cross Roller Bearing SRAU Type | One piece inner & outer ring
Super Slim Cross Roller Bearing SRAU Type
Product Number : SRAU (One pice inner & outer ring)
Inquire
DOWNLOAD CATALOG
SRAU Type features: Super slim type cross roller bearing with three options of bearing width: 5mm, 8mm and 13mm. Highly rigid and compact design is suitable for limited space and lightweight mechanism.
Product Description
CAD Download

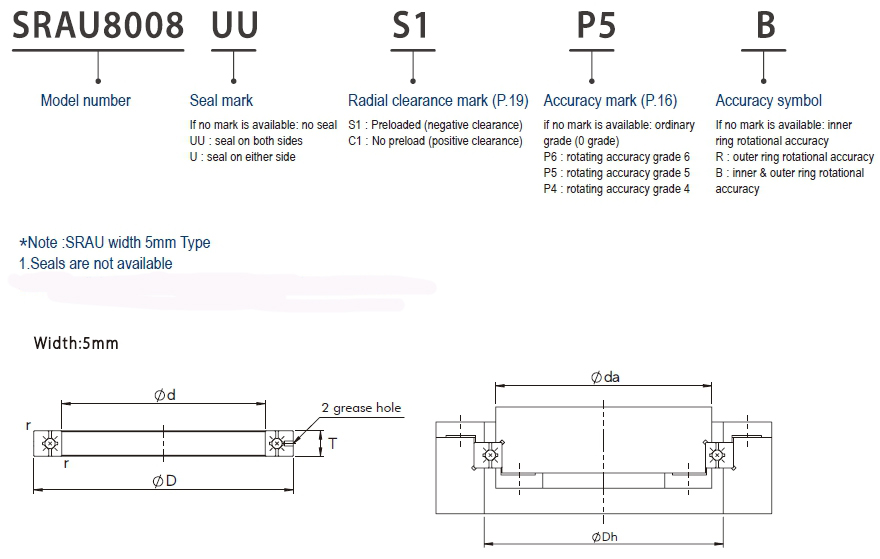

Models & Dimensions
Please download the bearing catalog for detailed specifications
單位：mm
Shaft
Diameter
Model
Number
Downlaod
Shaft
Diameter
Model
Number
Downlaod
PDF
2D(dxf)
3D
PDF
2D(dxf)
3D
10
SRAU1005
110
SRAU11008
20
SRAU2005
120
SRAU12008
30
SRAU3005
130
SRAU13008
40
SRAU4005
140
SRAU14008
45
SRAU4505
150
SRAU15008
50
SRAU5005
160
SRAU16013
SRAU5008
170
SRAU17013
60
SRAU6005
180
SRAU18013
SRAU6008
190
SRAU19013
70
SRAU7005
200
SRAU20013
SRAU7008
80
SRAU8005
SRAU8008
90
SRAU9005
SRAU9008
100
SRAU10005
SRAU10008
