X Axis Manual Stage SEMX40-F With Micrometer Head & Slide Feeding
˄
X Axis Manual Stage SEMX40-F

SEMX40-F

SEMX40-F

Product Number : SEMX40-F

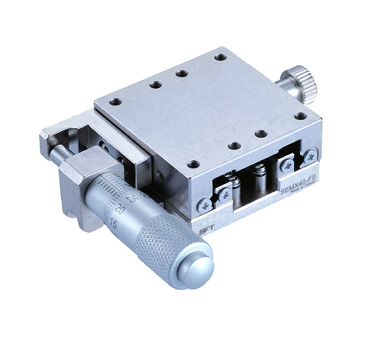

x axis linear ball bearing stage with micrometer head SEMX40-F

Table Size 40x40mm
Travel stroke ±6.5mm
Parallelism 30μm
Moving parallelism 10μm
Moving straightness 15μm
Pitching 30"
Yawing 25"
Load capacity 98N
Weight 0.24Kg
Material Carbon steel
Surface treatment Electroless nickel plating

The x axis linear ball bearing stage with micrometer head SEMX40-F. Slide way and body is in one unit. Ball moving in single groove is structured by 2 points – contact, and total 4 contact points in dual arc-groove to form strong rail construction.

The manual stage SEMX40-F is suitable for high precision and medium load positioning device, integrated production system, optical experiment, precision transmission and precision fine-tuning mechanism.

  • Single Axis : X Axis Manual Stage
  • Feeding Position : Slide feeding
  • Guiding Type : Linear Ball Bearig Guiding
  • Feeding Mode : Micrometer Head
