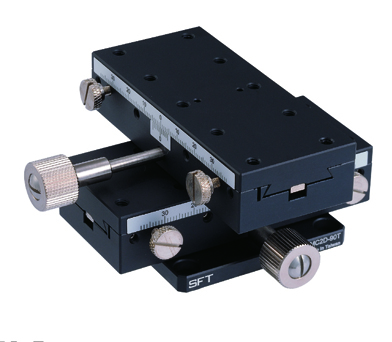

X Axis Dovetail Stage SEMC2D-90T With Micrometer Head & Rack and Thin Type
˄
X Axis Dovetail Stage SEMC2D-90T

SEMC2D-90T

SEMC2D-90T

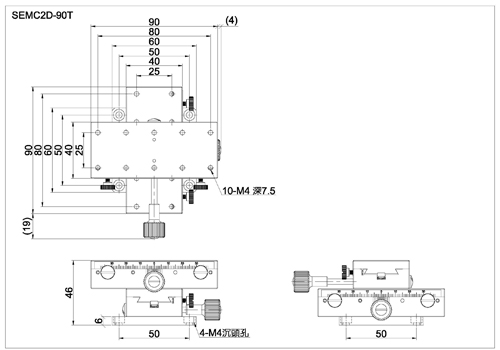

Product Number : SEMC2D-90T


Table Size 90x40mm
Travel stroke ±35mm
Moving straightness 30μm
Vertical load capacity 24.5N
Weight 0.50Kg
Material Aluminum
Surface treatment Black anodized

The SEMC2D-90T dovetail stage is a compact positioner for use in general purpose motion control applications. It provides a travel range of ±30mm and equipped with six tapped holes to maximize the mounting options for moving components. The modular design of the SEMC2D-90T allows single stages.

The x axis dovetail stage SEMC2D-90T is suitable for optical instruments, measuring devices, inspection apparatus, semiconductor manufacturing equipment, testing machines, microscopes, handling machine, processing machines, medical equipment, printing, and more.

  • Single Axis : X Axis Manual Stage
  • Guiding Type : Dovetail Guiding
  • Feeding Mode :Rack and Pinion Type
  • Minimum reading : 0.1mm/Vernier
