X Axis Manual Stage SEMX80-AS With Micrometer Head & Slide Feeding
˄
X Axis Manual Stage SEMX80-AS

SEMX80-AS

SEMX80-AS

Product Number : SEMX80-AS

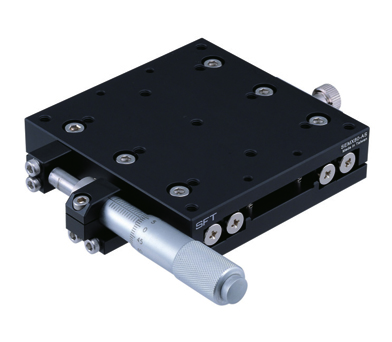

x axis crossed roller bearing stage with micrometer head SEMX80-AS

Table Size 80x80mm
Travel stroke ±12.5mm
Parallelism 50μm
Moving parallelism 30μm
Moving straightness 15μm
Pitching 35"
Yawing 25"
Load capacity 98.0N
Weight 0.44Kg
Material Aluminum
Surface treatment Black anodized

The x axis crossed roller bearing stage with micrometer head SEMX80-AS is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy.

The manual stage SEMX80-AS is suitable for high-precision and heavy load mobile devices, precision measurement of optics laboratory, precision fine-tuning, production machinery, inspection equipment, precision positioning, quantitative movement, and more.

  • Single Axis : X Axis Manual Stage
  • Feeding Position : Slide feeding
  • Guiding Type : Crossed roller bearing guiding
  • Feeding Mode : Micrometer Head Actuator with 0.01mm Resolution
