X Axis Dovetail Stage SEMC1C-80 With Micrometer Head & Rack and Pinion Long Stroke Type
˄
X Axis Dovetail Stage SEMC1C-80

SEMC1C-80

SEMC1C-80

Product Number : SEMC1C-80


Table Size 50x30mm
Travel stroke ±30mm
Moving parallelism 30μm
Moving straightness 30μm
Horizontal load capacity 29.4N
Weight 0.16Kg
Material Aluminum
Surface treatment Black anodized

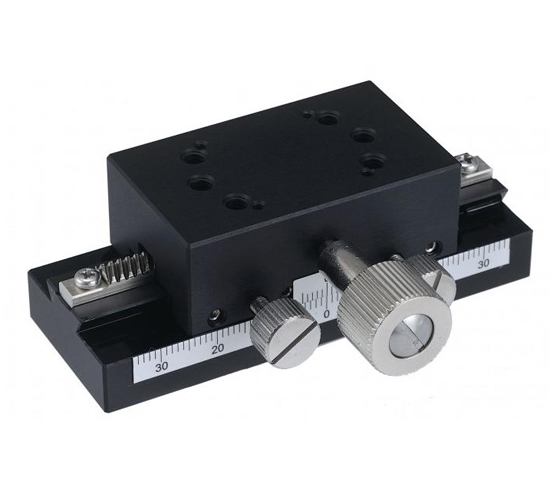

The SEMC1C-80 dovetail stage is a compact positioner for use in general purpose motion control applications. It provides a travel range of ±30mm and equipped with six tapped holes to maximize the mounting options for moving components. The modular design of the SEMC1C-80 allows single stages.

The x axis manual stage SEMC1C-80 is suitable for optical instruments, measuring devices, inspection apparatus, semiconductor manufacturing equipment, testing machines, microscopes, handling machine, processing machines, medical equipment, printing, and more.

  • Single Axis : X Axis Manual Stage
  • Guiding Type : Dovetail Guiding
  • Feeding Mode :Rack and Pinion Type
  • Minimum reading : 0.1mm/Vernier
