X Axis Dovetail Stage SEMC1C-300W With Micrometer Head & Rack and Pinion Long Stroke Type
˄

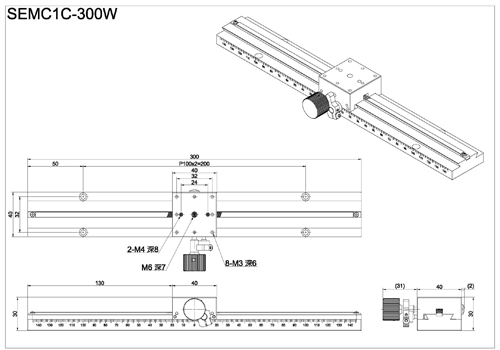

X Axis Dovetail Stage SEMC1C-300W

SEMC1C-300W

SEMC1C-300W

Product Number : SEMC1C-300W


Table Size 40x40mm
Travel stroke ±130mm
Moving parallelism 50μm
Moving straightness 50μm
Horizontal load capacity 29.4N
Vertical load capacity 24.5N
Weight 0.54Kg
Material Aluminum
Surface treatment Black anodized

The SEMC1C-300W dovetail stage is a compact positioner for use in general purpose motion control applications. It provides a travel range of ±30mm and equipped with single tapped holes to maximize the mounting options for moving components. The modular design of the SEMC1C-300W allows single stages.

The x axis dovetail stage SEMC1C-300W is suitable for optical instruments, measuring devices, inspection apparatus, semiconductor manufacturing equipment, testing machines, microscopes, handling machine, processing machines, medical equipment, printing, and more.

  • Single Axis : X Axis Manual Stage
  • Guiding Type : Dovetail Guiding
  • Feeding Mode :Rack and Pinion Type
  • Minimum reading : 0.1mm/Vernier
