X Axis Dovetail Stage SEMC1C-150 With Micrometer Head & Rack and Pinion Type
˄
X Axis Dovetail Stage SEMC1C-150

SEMC1C-150

SEMC1C-150

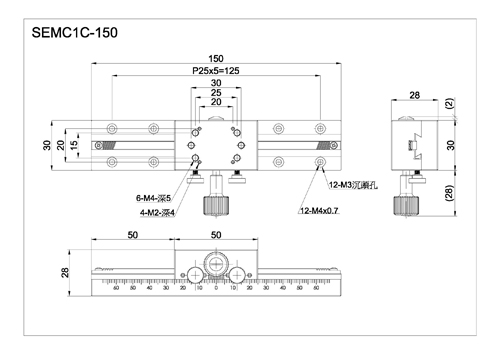

Product Number : SEMC1C-150


Table Size 50x30mm
Travel stroke ±65mm
Moving parallelism 40μm
Moving straightness 40μm
Horizontal load capacity 29.4N
Weight 0.24Kg
Material Aluminum
Surface treatment Black anodized

The SEMC1C-150 dovetail stage is a compact positioner for use in general purpose motion control applications. It provides a travel range of ±30mm and equipped with six tapped holes to maximize the mounting options for moving components. The modular design of the SEMC1C-150 allows single stages.

The x axis manual stage SEMC1C-150 is suitable for optical instruments, measuring devices, inspection apparatus, semiconductor manufacturing equipment, testing machines, microscopes, handling machine, processing machines, medical equipment, printing, and more.

  • Single Axis : X Axis Manual Stage
  • Guiding Type : Dovetail Guiding
  • Feeding Mode :Rack and Pinion Type
  • Minimum reading : 0.1mm/Vernier
