X Axis Manual Stage SEMC4D-90 With Micrometer Head & Rack and Pinion Type
˄
X Axis Manual Stage SEMC4D-90

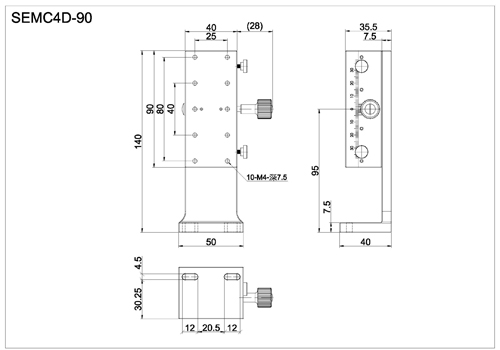

SEMC4D-90

SEMC4D-90

Product Number : SEMC4D-90


Table Size 90x40mm
Travel stroke ±35mm
Moving straightness 40μm
 load capacity 19.6N
Weight 0.45Kg
Material Aluminum
Surface treatment Black anodized

The x axis manual stage SEMC4D-90 is suitable for optical instruments, measuring devices, inspection apparatus, semiconductor manufacturing equipment, testing machines, microscopes, handling machine, processing machines, medical equipment, printing, and more.

  • Single Axis : X Axis Manual Stage
  • Guiding Type : Dovetail Guiding
  • Feeding Mode :Rack and Pinion Type
  • Minimum reading : 0.1mm/Vernier
