Z Axis Manual Stage SEMZA40-F With Micrometer Head & Central Feeding
˄
Z Axis Manual Stage SEMZA40-F

SEMZA40-F

SEMZA40-F

Product Number : SEMZA40-F

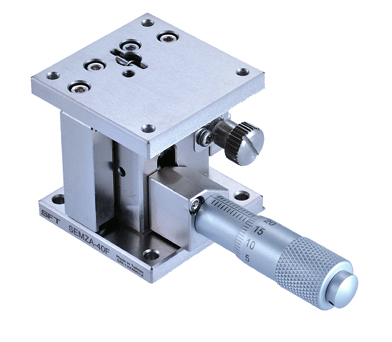

z axis linear ball bearing stage with micrometer head SEMZA40-F

Table Size 40x40mm
Travel stroke ±3.5mm
Parallelism 80μm
Load capacity 29.4N
Weight 0.3Kg
Material Carbon steel
Surface treatment Electroless nickel plating

The z axis linear ball bearing stage with micrometer head SEMZA40-F. Slide way and body is in one unit. Ball moving in single groove is structured by 2 points – contact, and total 4 contact points in dual arc-groove to form strong rail construction.

The manual stage SEMZA40-F is suitable for high precision and medium load positioning device, integrated production system, optical experiment, precision transmission and precision fine-tuning mechanism.

  • Single Axis : Z Axis Manual Stage
  • Feeding Position : Central feeding
  • Guiding Type : Linear Ball Bearig Guiding
  • Feeding Mode : Micrometer Head
