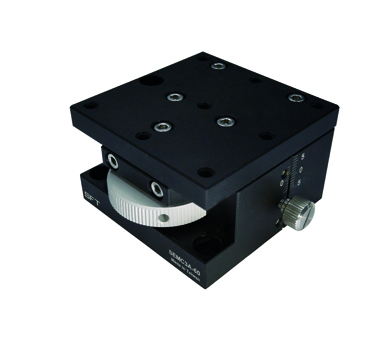

Z Axis Dovetail Stage SEMC3A-60 With Feeding Screw
˄
Z Axis Dovetail Stage SEMC3A-60

SEMC3A-60

SEMC3A-60

Product Number : SEMC3A-60






Table Size 60x60mm
Travel stroke +7mm
Moving straightness 100μm
Load capacity 98.1N
Weight 0.37Kg
Material Aluminum
Surface treatment Black anodized

The SEMC3A-60 dovetail stage is a compact positioner for use in general purpose motion control applications. It provides a travel range of +7mm and equipped with eight tapped holes to maximize the mounting options for moving components. The modular design of the SEMC3A-60 allows single stages.

The z axis dovetail stage SEMC3A-60 is suitable for optical instruments, measuring devices, inspection apparatus, semiconductor manufacturing equipment, testing machines, microscopes, handling machine, processing machines, medical equipment, printing, and more.

  • Single Axis : Z Axis Manual Stage
  • Guiding Type : Dovetail Guiding
  • Feeding Mode :Rack and Pinion Type
  • Minimum reading : 0.1mm/Vernier
