XY Axis Manual Stage SEMY100-AC

  • XY Axis Manual Stage SEMY100-AC With Micrometer Head & Central Feeding

SEMY100-AC

SEMY100-AC

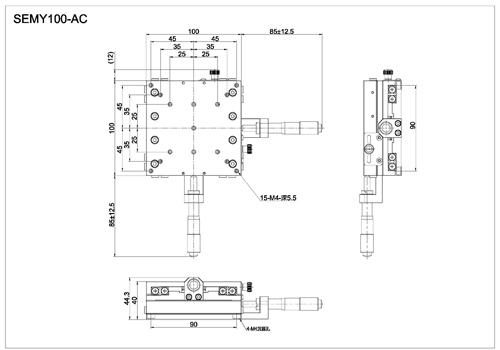

Product Number : SEMY100-AC

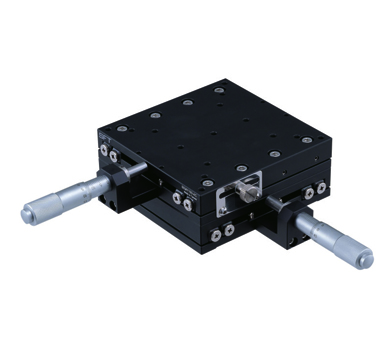

xy axis crossed roller bearing stage with micrometer head SEMY100-AC

Table Size 100x100mm
Travel stroke ±12.5mm
Parallelism 90μm
Moving parallelism 30μm
Moving straightness 15μm
Pitching 35"
Yawing 25"
Load capacity 140.1N
Weight 1.29Kg
Material Aluminum
Surface treatment Black anodized

The xy axis crossed roller bearing stage with micrometer head SEMY100-AC is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy.

The manual stage SEMY100-AC is suitable for high-precision and heavy load mobile devices, precision measurement of optics laboratory, precision fine-tuning, production machinery, inspection equipment, precision positioning, quantitative movement, and more.

  • Dual Axis : XY Axis Manual Stage
  • Feeding Position : Central feeding
  • Guiding Type : Crossed roller bearing guiding
  • Feeding Mode : Micrometer Head Actuator with 0.01mm Resolution
