α Axis Dovetail Stage SEMXG4-25CS With Worm and Worm Gears
˄

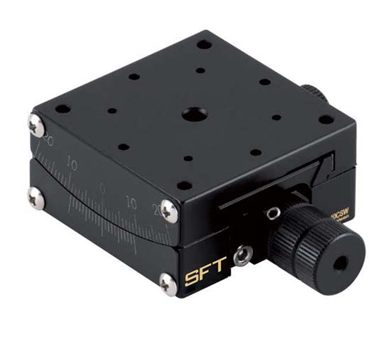

α Axis Dovetail Stage SEMXG4-25CS

SEMXG4-25CS

SEMXG4-25CS

Product Number : SEMXG4-25CS


Table Size 40x40mm
Height of rotation center 25±1.0
Travel stroke ±20°
Stroke per revolution ≒2.2°‧
Allowable loading 29.4N
Weight 0.08KG
Material Aluminum alloy
Surface treatment Black anodized



The α Axis dovetail stage SEMXG4-25CS is suitable for optical instruments, measuring devices, inspection apparatus, semiconductor manufacturing equipment, testing machines, microscopes, handling machine, processing machines, medical equipment, printing, and more.

  • Single Axis : α Axis Manual Stage
  • Guiding Type : Dovetail Guiding
  • Feeding Mode : Worm and Worm Gears
